Uninterruptible Power Supplies (UPS)
Single phase UPS

MEGA M X1-High Availability Solution

Uninterruptible Power Supplies (UPS)
Single phase UPS

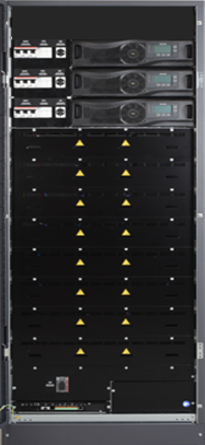

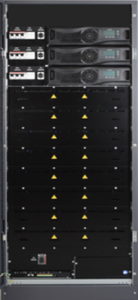

MEGA M X1-High Availability Solution

Product Overview

A fully modular UPS system, with the highest power availability, as single phase in single phase our or three phase in single phase out. Equipped with DARA™ (Distributed Active-Redundant Architecture) technology, the MEGA M reduces the potential of human error and downtime which eases functionality in critical applications.

Enquire now

Key Features

Energy
Efficient
Unlocked
software
2 year
warranty

Unique feature

The MEGA M has the highest availability of any UPS in the market with 9 nines. Unity power factor and DARA™ technology also reduces the potential of human error.

Design

Metartec have designed the MEGA M as a high density fully modular UPS system with an optimised footprint, increased power availability and hot swappable UPS modules.

Expandability

The MEGA M X1 is scalable from 10kW to 600kW

Documentation

MEGA M X1

Product Specifications

MEGA-M X1 30 EB
Download datasheet
Run time for load
15
kW
Max capacity used 50%
Capacity kW
30
Input
Voltage
220V/230V /240V (Single Phase Input) or 380V/400V/415V (Three Phase Input)
Voltage Range
220V/230V /240V (line to neutral)
Frequency range
50/60Hz
Input current THDi*
THDi <3% for linear load, THDi <5% for nonlinear load
Power factor
0.99
Output
Output voltage
220V/230V/240V (line to neutral)
Voltage regulation
1.00%
THDu
<2%(linear load), <3%(nonlinear load)
Power factor
Unity
Frequency range
50/60Hz
Frequency precision
0.1% Battery Mode
Overload capacity
124% continuous; 125% for 10 minutes; 150% for 1 minute
Battery
Voltage
360VDC to 600VDC
Charger power
10% of Active Power
Voltage precision
1%
System
Efficiency
Double Conversion 97%
Display
Colour LCD Touch Screen+ LED
IP class
IP20
Interface
Standard: RS232, RS485, Dry contactor, SNMP card, EPO and Bluetooth
Operation/storage temperature
0-40oC/ -40oC-70oC
Relative humidity
0-95% (non-condensing)
Noise
65 dB
Dimensions
Weight kg
191
Width mm
510
Depth mm
815
Height mm
1315
