CENTI M

Product Overview

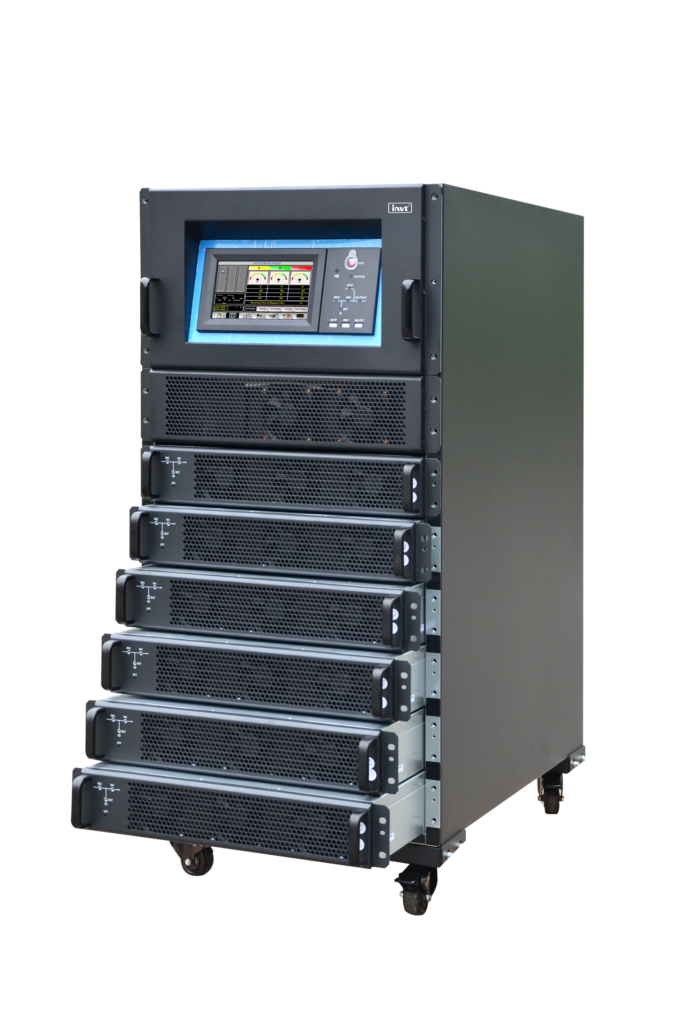

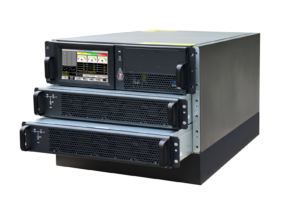

Hugely versatile UPS to match a whole range of environments. This kW rated UPS unit has the ability to be a rack mounted or standalone tower, with selectable topology with the options of single phase in / single phase out or three phase in / single phase out (10 to 60kW) and three phase in / three phase out (10 to 90kW). This model offers unity power factor and is an ideal solution for new and retro-fit projects. Up to three frames can be connected in parallel.

Key Features

Energy
Efficient
Unlocked
software
2 year
warranty

Unique feature

The CENTI M has highly versatile with unity power factor. This UPS comes with flexible topology and the options of 1:1, 3:1 and 3:3

Design

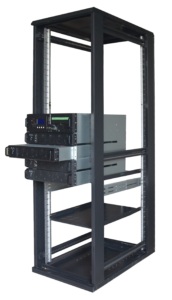

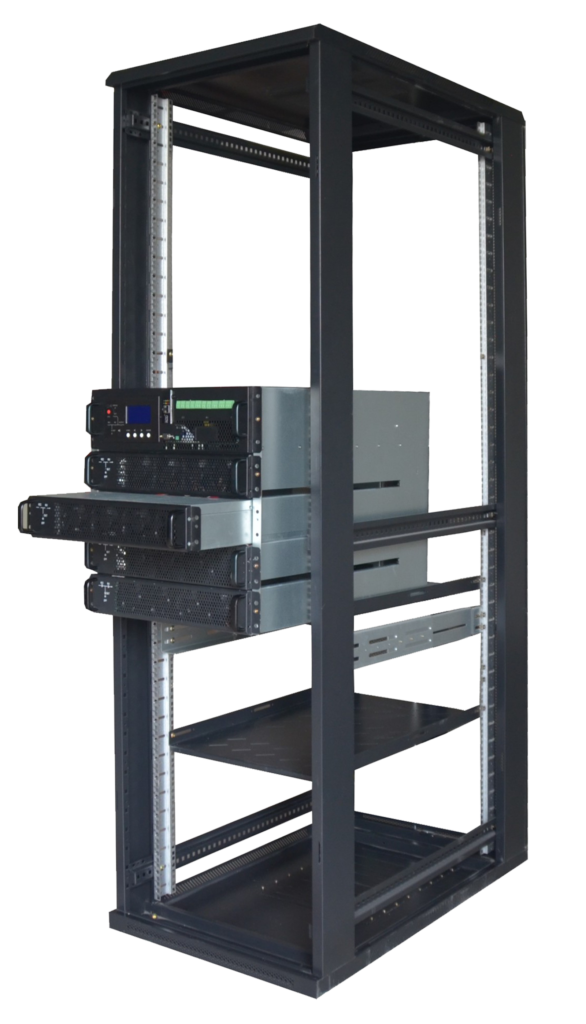

Metartec have designed the CENTI M in a convertible form design which can be tower or rack integratable

Expandability

The CENTI M is scalable from 10kW to 270kVA.

Documentation

Product Specifications

Run time for load
10
kW
Max capacity used 50%
Capacity kW
20
Input
Voltage
380V/400V/415V (Line-Line)
Voltage Range
220V/230V /240V (line to neutral)
Frequency range
40-70Hz
Input current THDi*
<4%
Power factor
>0.99
Output
Output voltage
380V/400V/415V (line to line)
Voltage regulation
1.50%
THDu
<1%(linear load), <5.5%(nonlinear load)
Power factor
1
Frequency range
50/60Hz
Frequency precision
1.50%
Overload capacity
110% for 60minutes; 125% for 10 minutes;150% for 1 minute; >150% for 200ms
Battery
Voltage
±216VDC or ±228VDC or ±240VDC or ±252VDC or ±264VDC
Charger power
20% of Active Power
Voltage precision
1%
System
Efficiency
Double Conversion >96% / ECO Mode 99%
Display
Colour LCD Touch Screen+ LED
IP class
IP20
Interface
Standard: RS232, RS485, Dry contactor, SNMP card, EPO
Operation/storage temperature
0-40oC/ -25oC-70oC
Relative humidity
0-95% (non-condensing)
Noise
54 dB
Dimensions
Weight kg
133
Width mm
485
Depth mm
697
Height mm
398
